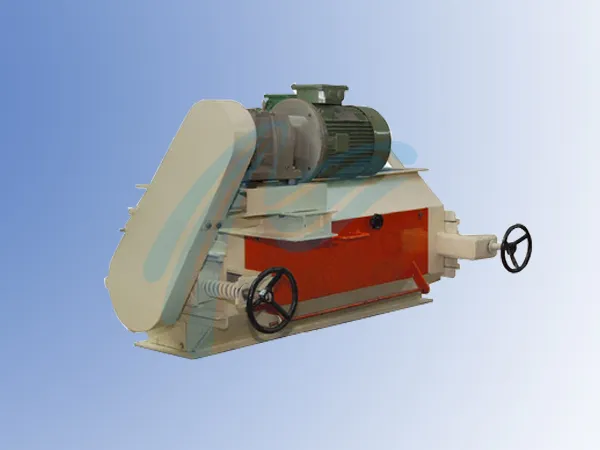

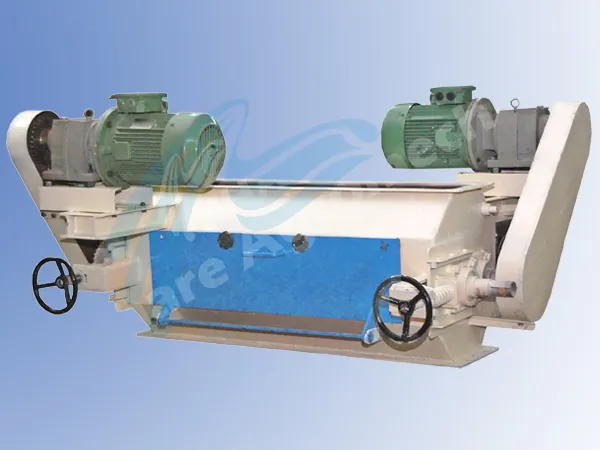

A crumbler is a roller mill with rolls specially designed for breaking up pellets into smaller particles. Usually the crumbler consists of two corrugated rolls situated below the cooler / drier exit. The pellets can then be diverted into the crumbler.
The Crumbler Roller are made of very durable chilled cast iron thus reducing the operational cost.
Crumble Roller are easy to exchange.
One roller is fixed and other is adjustable & Spring loaded in order to adjust the gap between two rollers. Rolle gap can vary from 0 to 10mm.
Rollers are dynamically balanced.
Capacitation available from 2.5 to 15 TPH.
Features :
• Excellent reliability and superb performance
• Flexible enough to meet the requirements of the customer
• Highly durable and long life servicing because it has got a robust design
• Our Crumbler has a by-pass operated by manual flap
• Easy to operate.
MODEL |
Roller Size |
POWER (HP) |
POWER For Feeder (HP) |
CAPACTY (TPH) |
Roller Gap Adjustment |
KACR 1 |
200x800 |
1.5 X 2 |
1 |
1 TPH |
Manual |
KACR 2.5 |
200X1000 |
2 X 2 |
1 |
2.5 TPH |
Manual |
KACR 5 |
200 X 1200 |
3 X 2 |
1 |
5 TPH |
Manual |
KACR 7.5 |
200 X 1500 |
5 X 2 |
1 |
7.5 TPH |
Manual |
KACR 10 |
250 X 1200 |
7.5 X 2 |
1.5 |
10 TPH |
Manual |
KACR 15 |
250 X 1500 |
10 X 2 |
1.5 |
15 TPH |
Manual/Electronic Control |
KACR 20 |
250 X 1800 |
12.5 X 2 |
1.5 |
20 TPH |
Manual/Electronic Control |
