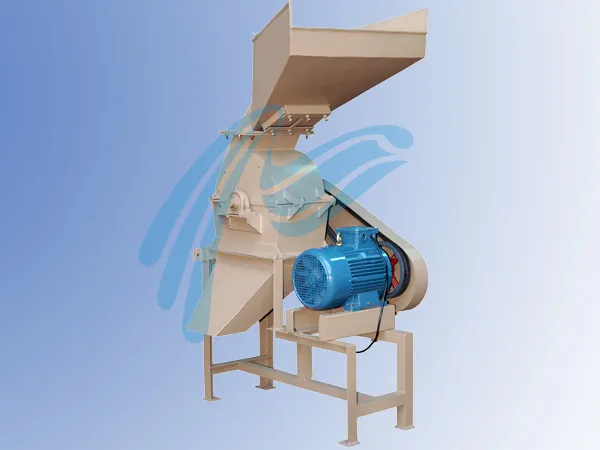

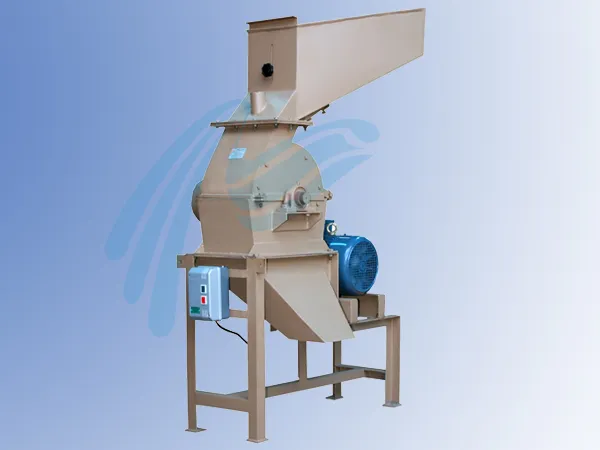

Half Screen Hammer Mills


We are Manufacturer, Supplier & Exporter of Half Screen Hammer Mills and our setup is situated in Miraj, Sangli, Maharashtra, India.

Application
Poultry Feed, Cattle Feed, Shrimp Feed, Pig Feed, Fish Feed, Organic Fertilizers, All types Grains, Bio mass etc.

Features:
• Either Gravity fall Bottom discharge type or with pneumatic suction arrangement.
• Low maintenance cost.

• Sturdy and robust construction.

• Easy and labour friendly Screen and hammer changing. Best Possible output to input ratio.

• Hammer mill Rotor is dynamically balanced.

• Hardened hammers in various grades depending upon application.

• Screens with wide range of hole diameters from 0.75 mm to 50 mm and various thickness.

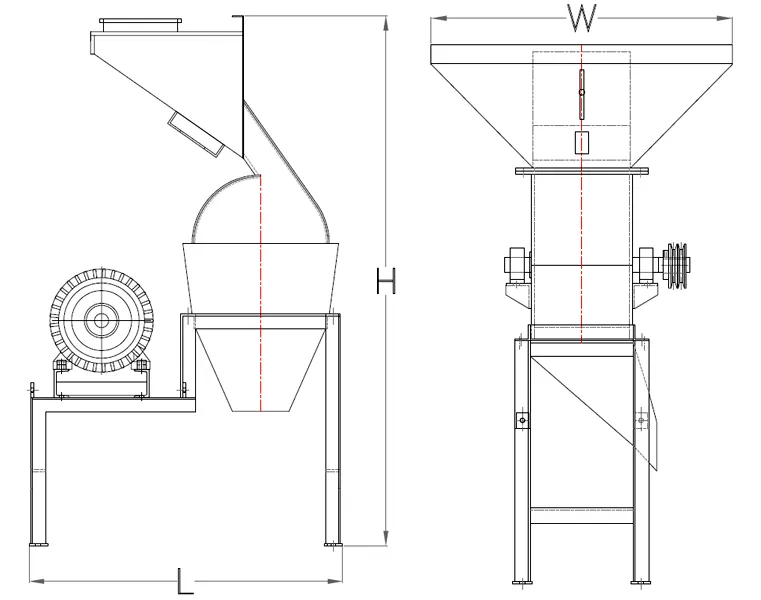

MODEL

POWER REQ.

W

L

H

KAHSH - 3

2/3 HP

650

760

1290

KAHSH - 5

5 HP

775

850

1460

KAHSH - 7.5

7.5 HP

850

850

1460

KAHSH - 10

10 HP

900

965

1540

KAHSH - 12.5

12.5 HP

900

1180

1615

KAHSH - 15

15 HP

900

1290

1920

KAHSH - 20

20 HP

950

1520

2060
